Número de pieza del fabricante
JCB602
Garantía
?
24 meses
EAN
0708747434491

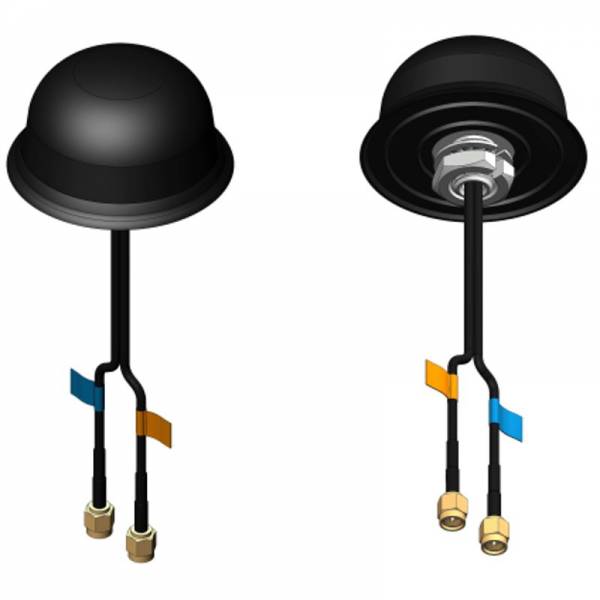

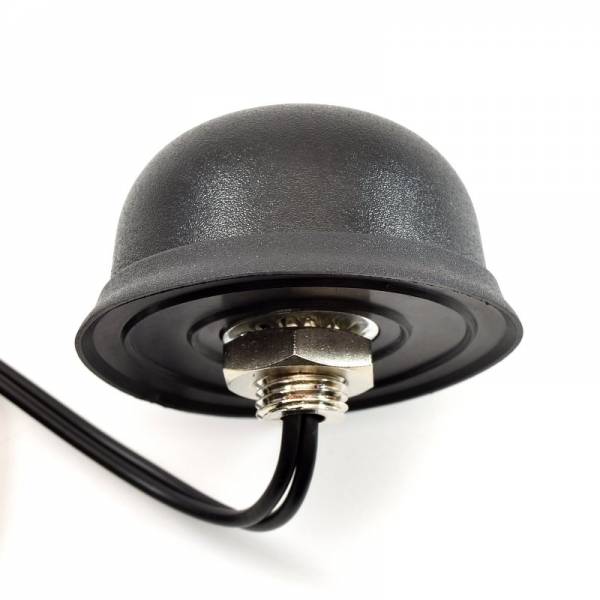

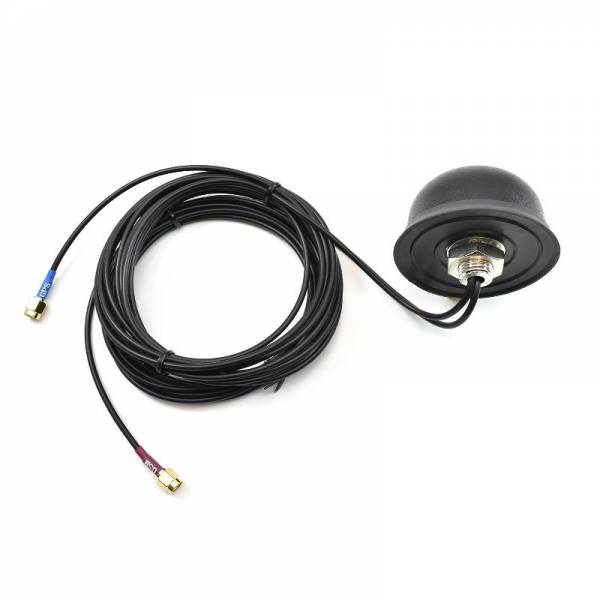

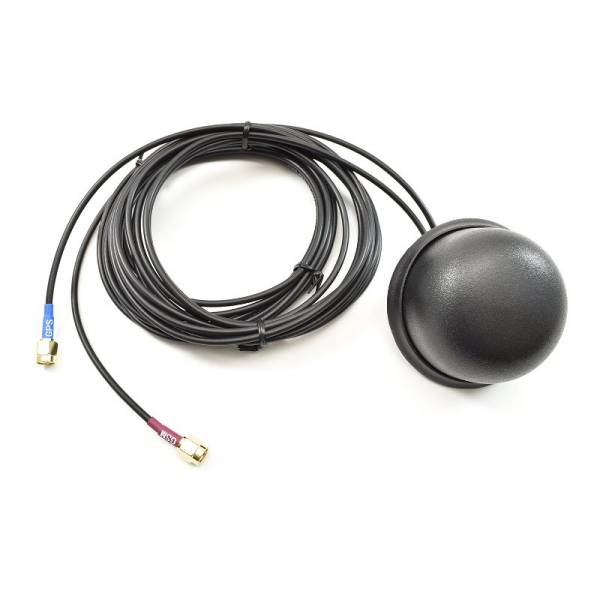

4G LTE/GPS/GLONASS Antena Exterior Combinada 2dBi, 3m
en stock
?
27.95 €
27.95 €
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
4G (LTE)
Antena
Diseño de Antena
Techo
Rango de Frecuencia y Ganancia de la Antena Móvil
0.824 - 0.960 (GHz) 2 (dBi), 1.710 - 2.170 (GHz) 2 (dBi)
Ganancia de Antena Móvil
2 dBi
Polarización
Lineal
Rango de Frecuencia y Ganancia de la Antena GPS
1575.42 MHz 5 dBic (Zenith)
Longitud de Cable
3 m
VSWR
< 2.0
Impedancia
50 Ω
Conector
Conectores de RF
(2) SMA Male
Parámetros Físicos
Código de protección de ingreso
IP67

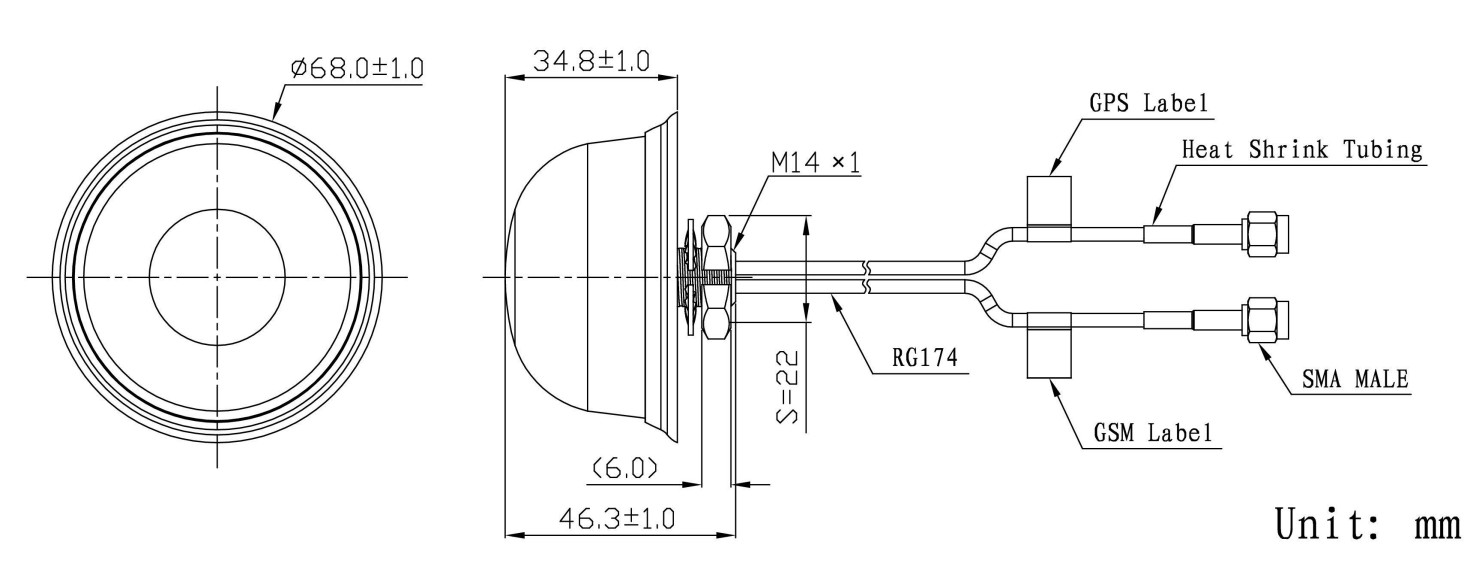

Dimensiones
Ø68 x 35 mm
Temperatura de funcionamiento
-40 °C a 85 °C
Medio ambiente
Exterior
Método de montaje
Tornillo
