Número de pieza del fabricante
JCG605LM4
Garantía
?
24 meses
EAN
0708747435795

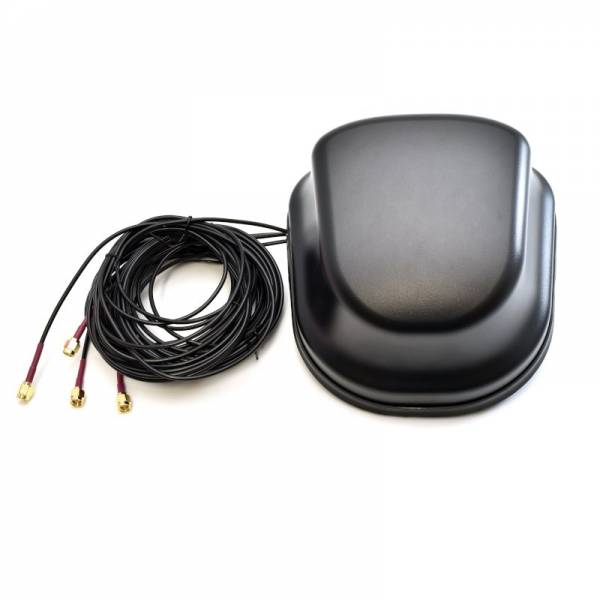

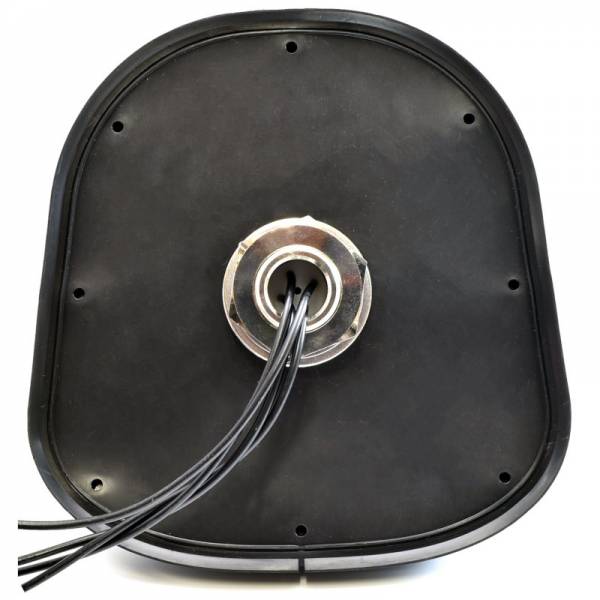

4G MIMO 4x4 Antena celular 3.5dBi IP67, SMA Male
en stock
?
47.40 €
47.40 €
Descripción detallada
Especificaciones técnicas
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
4G (LTE)
Antena
Diseño de Antena
Techo
Rango de Frecuencia y Ganancia de la Antena Móvil
0.698 - 0.960 (GHz) 3.5 (dBi), 1.710 - 2.690 (GHz) 3.5 (dBi)
Ganancia de Antena Móvil
3.5 dBi
Polarización
Lineal
Longitud de Cable
3 m
VSWR
< 3
Impedancia
50 Ω
Conector
Conectores de RF
(4) SMA Male
Parámetros Físicos
Color
Negro
Material
Plástico ABS
Código de protección de ingreso
IP67

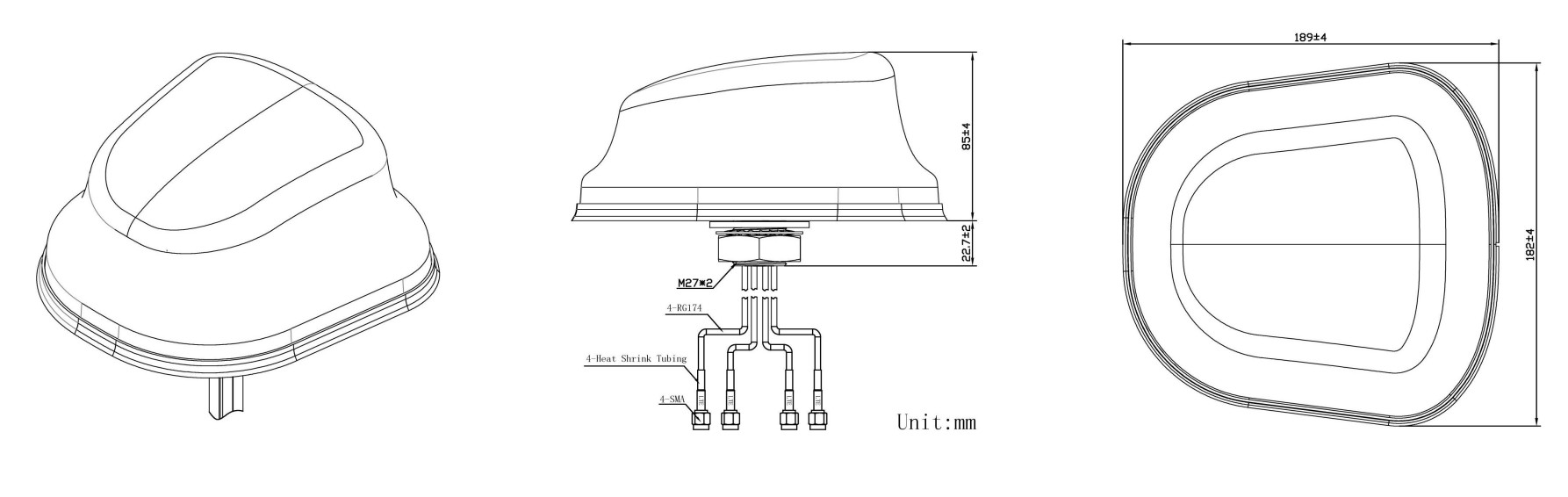

Dimensiones
185 x 180 x 90 mm
Temperatura de funcionamiento
-40 °C a 85 °C
Medio ambiente
Exterior
Método de montaje
Tornillo
