Número de pieza del fabricante
ARS-25-57A
Garantía
?
24 meses
EAN
4718050306954

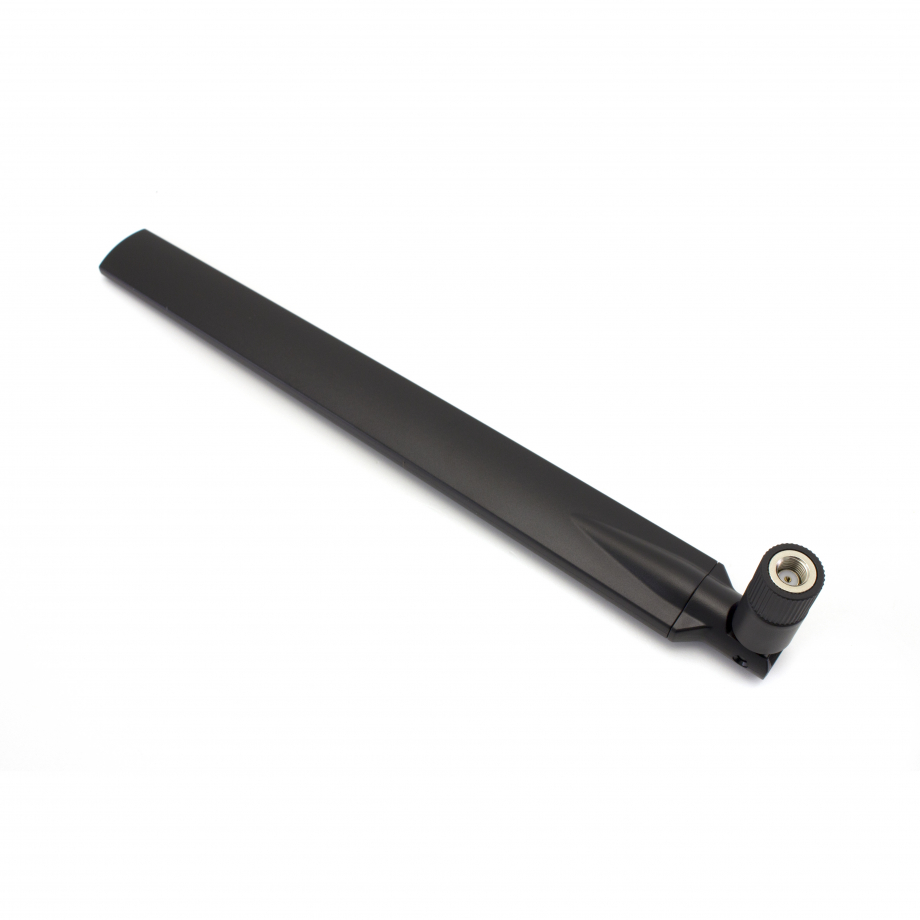

Alfa 2.4/5GHz Antena Interior 5/7dBi RP-SMA Male
en stock
?
12.16 €
12.16 €
Productos compatibles
Especificación
Antena
Diseño de Antena
Omni
Rango de Frecuencia y Ganancia de la Antena Inalámbrica
2.4 - 2.483 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 7 (dBi)
Ancho de haz
360 ° Vertical
VSWR
< 2.5
Impedancia
50 Ω
Conector
Conectores de RF

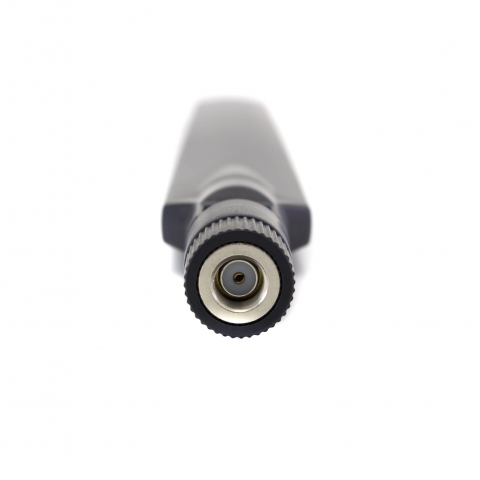

(1) RP-SMA Male
Parámetros Físicos
Dimensiones
Ø18.5 x 231 mm
Temperatura de funcionamiento
-10 °C a 55 °C
