Número de pieza del fabricante
JCE305
Garantía
?
24 meses
EAN
0708747437683

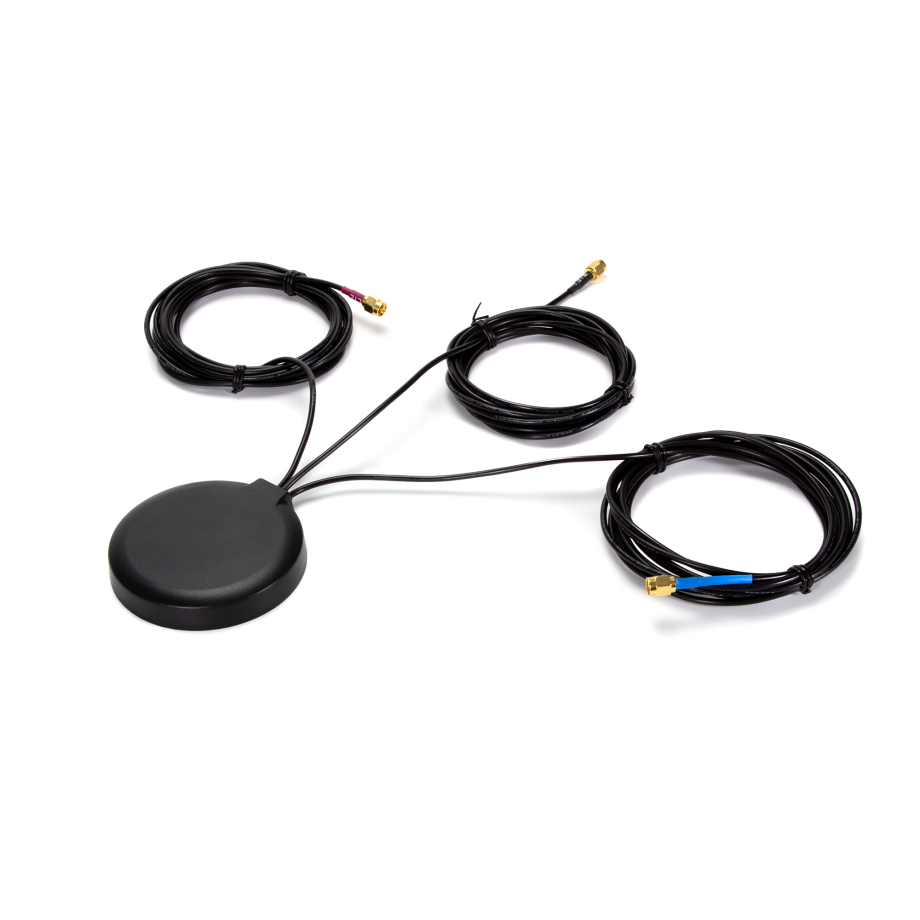

LTE/GPS/GLONASS/Wi-Fi Antena Exterior Combinada JCE305
en stock
?
18.45 €
18.45 €
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
4G (LTE)
Antena
Diseño de Antena
Techo
Rango de Frecuencia y Ganancia de la Antena Inalámbrica
2.400 - 2.483 (GHz) 3 (dBi), 4.900 - 5.825 (GHz) 3 (dBi)
Rango de Frecuencia y Ganancia de la Antena Móvil
0.698 - 0.960 (GHz) 3 (dBi), 1.710 - 2.700 (GHz) 3 (dBi)
Ganancia de Antena Móvil
3 dBi
Rango de Frecuencia y Ganancia de la Antena GPS
1575.42 MHz 2 dBic (Zenith)
Longitud de Cable
3 m
Impedancia
50 Ω
Conector
Conectores de RF

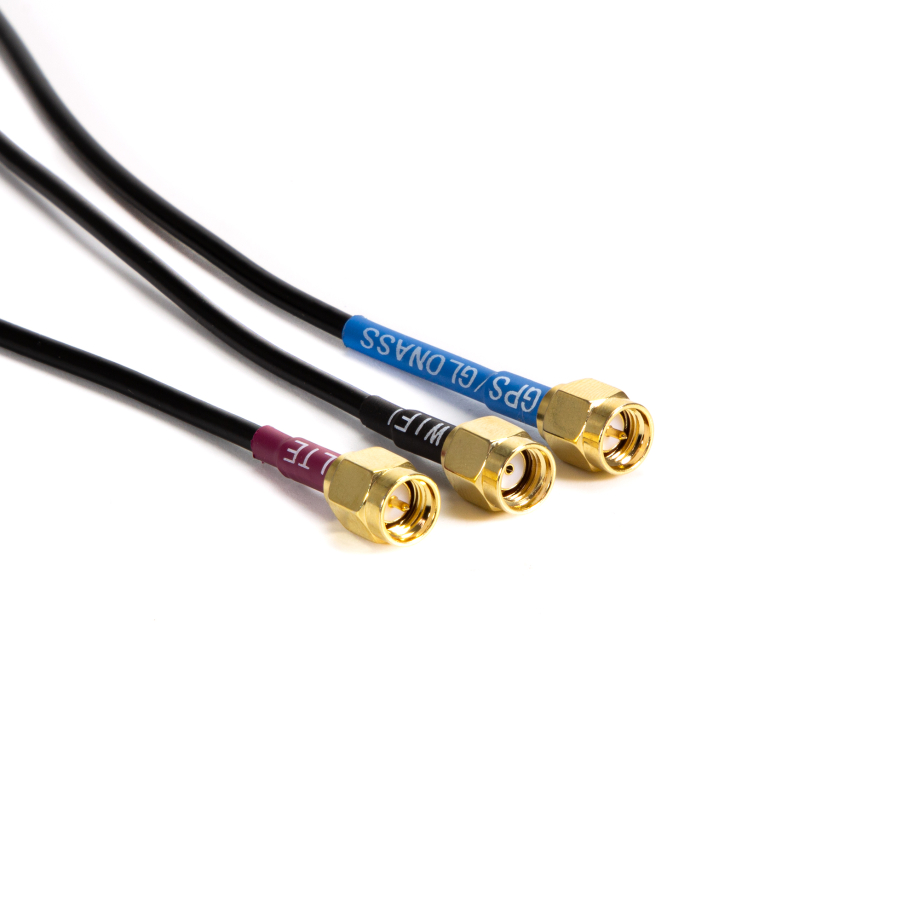

(2) SMA Male, (1) RP-SMA Male
Parámetros Físicos
Color
Negro
Código de protección de ingreso
IP67

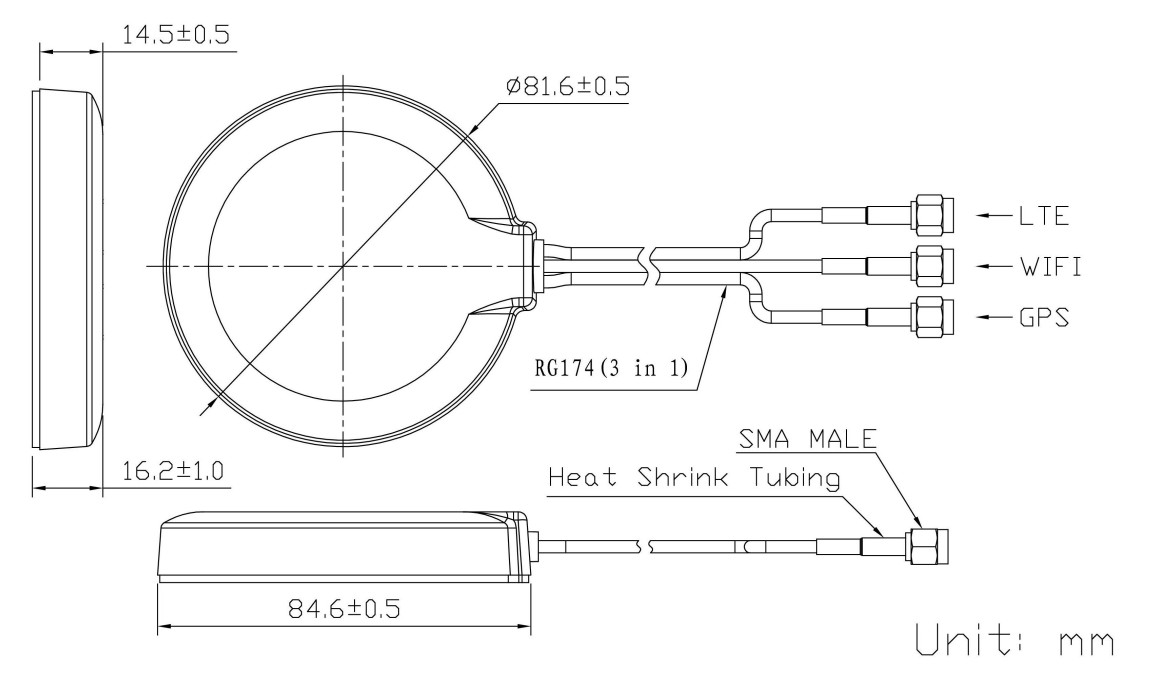

Dimensiones
Ø85 x 16.2 mm
Temperatura de funcionamiento
-40 °C a 85 °C
Medio ambiente
Exterior
Método de montaje
Magnética
