Marca
Número de pieza del fabricante
AX09M
Garantía
?
24 meses
EAN
5907772035115

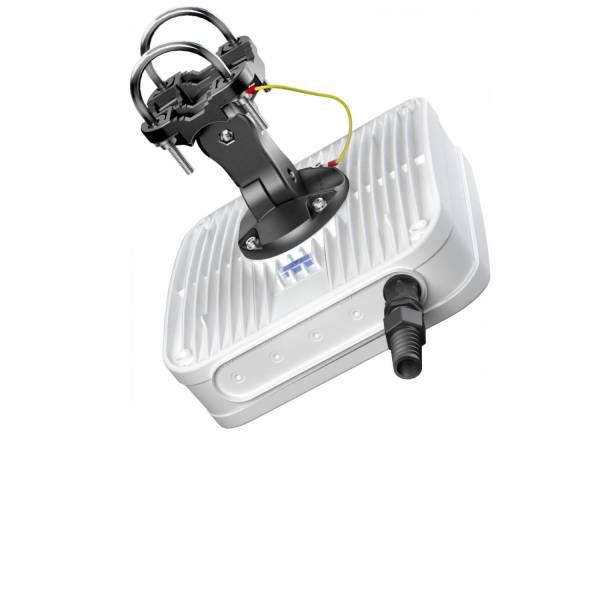

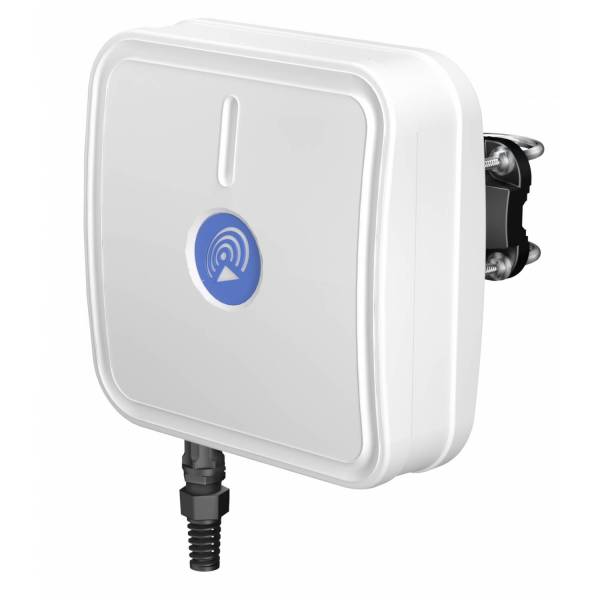

QuMax para RUTX09
en stock
?
128.49 €
128.49 €
Descripción detallada
Especificaciones técnicas
Especificación
Red Móvil
Generación de redes móviles
4G (LTE)
Antena
Diseño de Antena
Panel
Rango de Frecuencia y Ganancia de la Antena Móvil
0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Ganancia de Antena Móvil
4 dBi, 5 dBi, 6 dBi
Ancho de haz
90 ° Vertical, 90 ° Horizontal
Polarización
Vertical
VSWR
< 2
Impedancia
50 Ω
Parámetros Físicos
Color
Blanco
Material
Aluminio, Plastico, Fibra de vidrio, Politetrafluoroetileno
Código de protección de ingreso
IP67

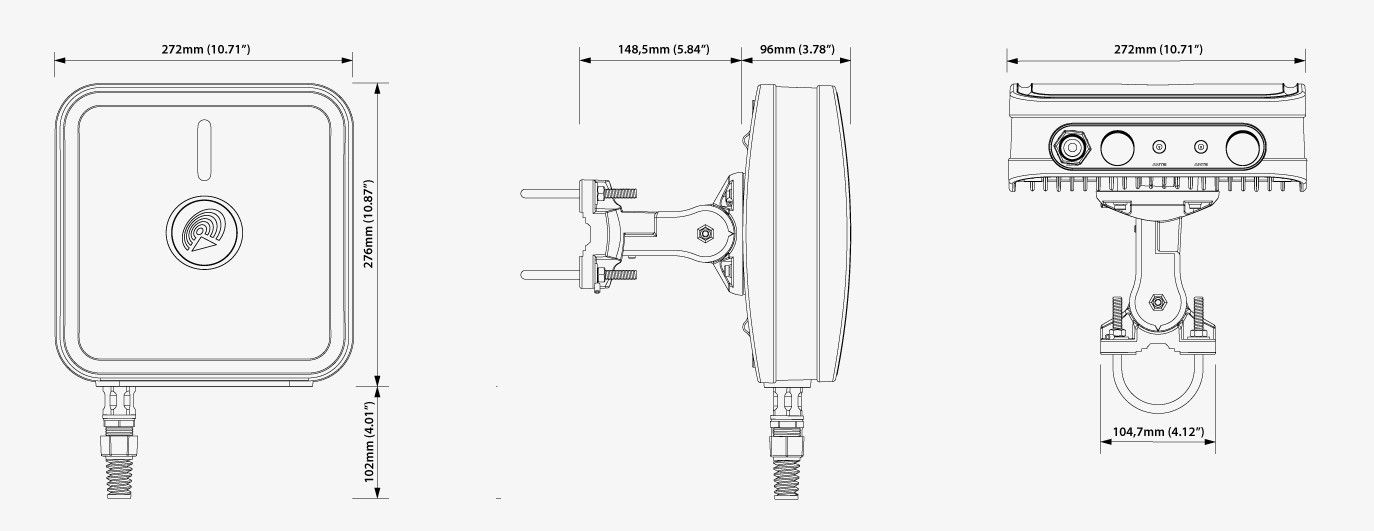

Dimensiones
272 x 276 x 96 mm
Peso
1.8 kg
Temperatura de funcionamiento
-40 °C a 75 °C
Medio ambiente
Exterior
Método de montaje
Montaje en Poste
