QuSpot para TRB500
en stock
?
158.80 €
158.80 €
Descripción detallada

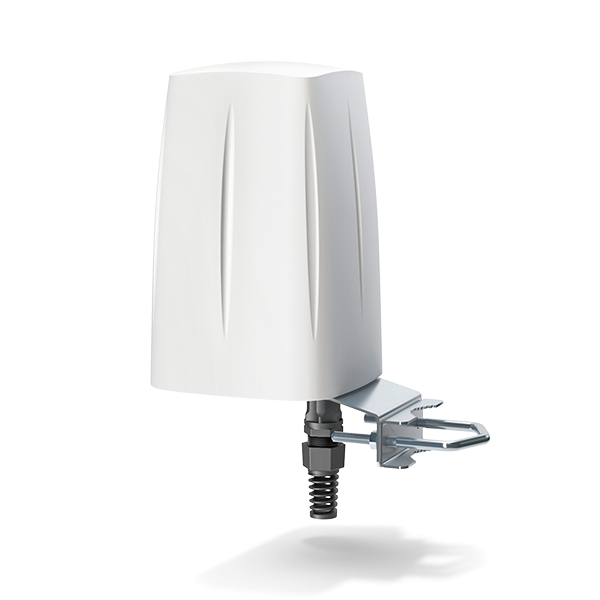

QuSpot para TRB500 es una antena de exterior diseñada para proporcionar una conectividad inalámbrica fiable en diversos entornos. Este producto es una solución todo en uno que integra una antena 5G omnidireccional de alta ganancia con RUTX50 en una única carcasa IP67. Dicha integración permite implementar nuevas soluciones TRB500 para exteriores.
QuSpot para TRB500 es una solución ideal para conectividad inalámbrica en exteriores en aplicaciones en movimiento como transporte, yates, barcos y camping, pero también centros urbanos con alta densidad de señal. Para obtener el máximo rendimiento se incluye un divisor PoE Gigabit.
Bandas LTE / 5G compatibles: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30,33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67,68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90,n95, n97, n98, n100, n101.
Especificaciones técnicas
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
4G (LTE), 5G (NR)
Antena
Rango de Frecuencia y Ganancia de la Antena Móvil
0.617 - 0.96 (GHz) 2 (dBi), 1.7 - 2.7 (GHz) 4 (dBi), 3.3 - 4.3 (GHz) 4.5 (dBi)
Ganancia de Antena Móvil
2 dBi, 4 dBi, 4.5 dBi
Ancho de haz
360 °
Polarización
Vertical
VSWR
< 2.5
Impedancia
50 Ω
Parámetros Físicos
Material
Aluminio, Plástico ABS, Politetrafluoroetileno
Código de protección de ingreso
IP67
Dimensiones
160 x 160 x 240 mm
Peso
1.5 kg
Temperatura de funcionamiento
-40 °C a 75 °C
Medio ambiente
Exterior
Método de montaje
Montaje en Poste
El Paquete Contiene
Fuente de alimentación externa
No incluido
