Marca
Número de pieza del fabricante
AYA-4G-18
Garantía
?
24 meses
EAN
4718050305582

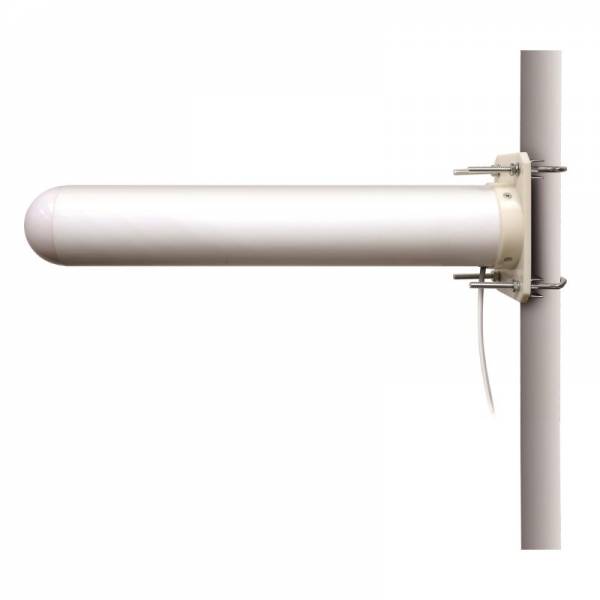

4G LTE Antena Exterior Yagi Direccional 18dBi
en stock
?
44.27 €
44.27 €
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
4G (LTE)
Antena
Diseño de Antena
Yagi
Rango de Frecuencia y Ganancia de la Antena Móvil
1.71 - 2.7 (GHz) 18 (dBi)
Ganancia de Antena Móvil
18 dBi
Ancho de haz
36 ° Vertical, 40 ° Horizontal
Polarización
Vertical, Horizontal
Longitud de Cable
0.3 m
VSWR
< 1.5
Impedancia
50 Ω
Potencia de Entrada Máxima
100 W
Conector
Conectores de RF
(1) N Male
Parámetros Físicos
Color
Gris
Material
Plástico UV
Dimensiones
Ø80 x 450 mm
Peso
0.8 kg
Temperatura de funcionamiento
-40 °C a 70 °C
Medio ambiente
Exterior

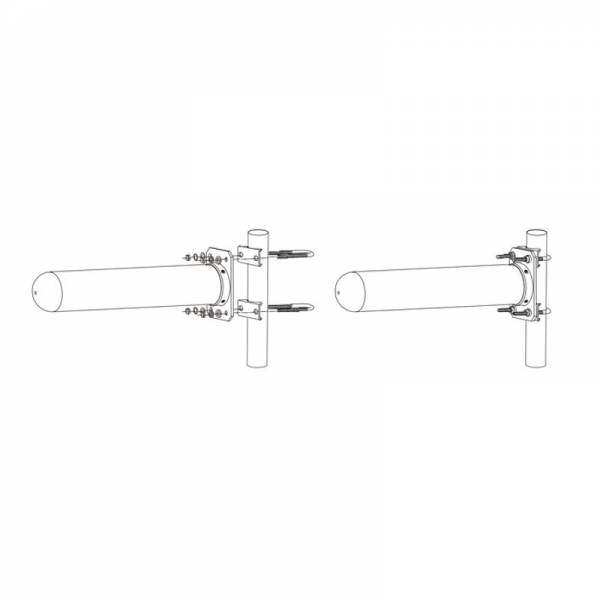

Método de montaje
Montaje en Poste
Velocidad nominal del viento
60 m/s
