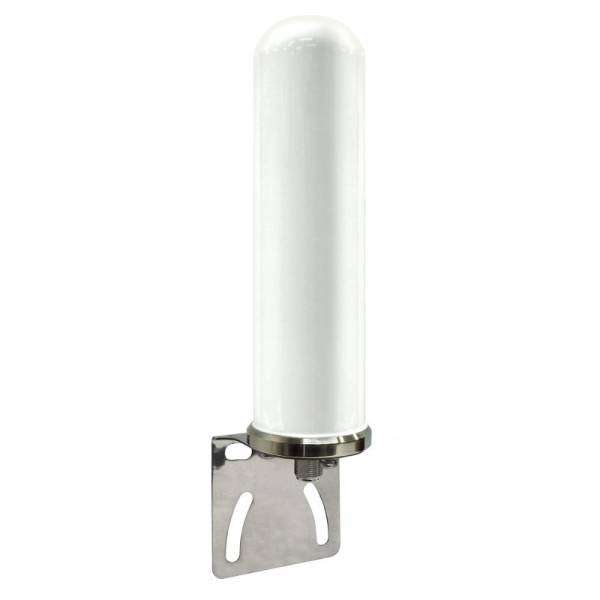

Antena exterior 4G LTE 6dBi, grado marino
en stock
?
60.08 €
60.08 €
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
4G (LTE)
Antena
Diseño de Antena
Omni
Rango de Frecuencia y Ganancia de la Antena Móvil
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 6 (dBi)
Ganancia de Antena Móvil
4 dBi, 6 dBi

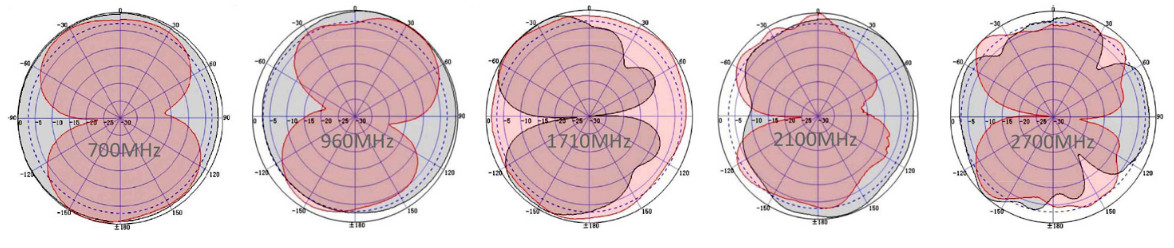

Ancho de haz
18 ° Vertical, 360 ° Horizontal
Polarización
Vertical
VSWR
< 1.5
Impedancia
50 Ω
Potencia de Entrada Máxima
100 W
Conector
Conectores de RF

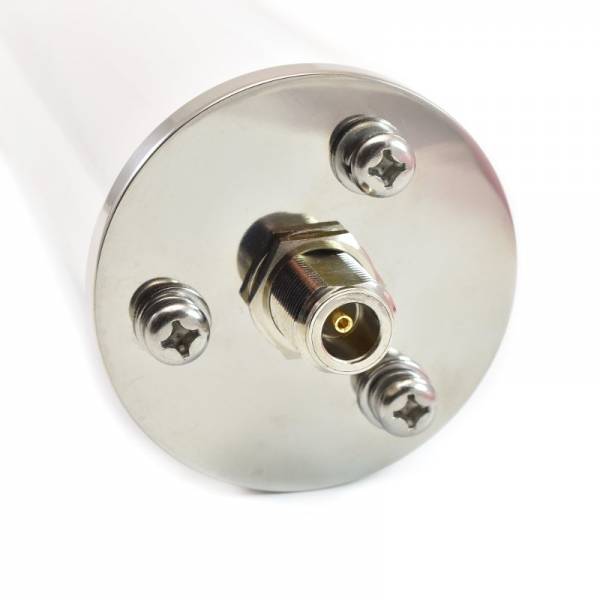

(1) N Female
Parámetros Físicos
Color
Blanco
Material
Fibra de vidrio
Código de protección de ingreso
Grado marino
Dimensiones
Ø63 x 220 mm
Peso
1.2 kg
Temperatura de funcionamiento
-40 °C a 70 °C
Medio ambiente
Exterior
Método de montaje
Montaje en Poste
Velocidad nominal del viento
60 m/s
