Marca
Número de pieza del fabricante
PR1KS536
Garantía
?
24 meses
EAN
4779051840649

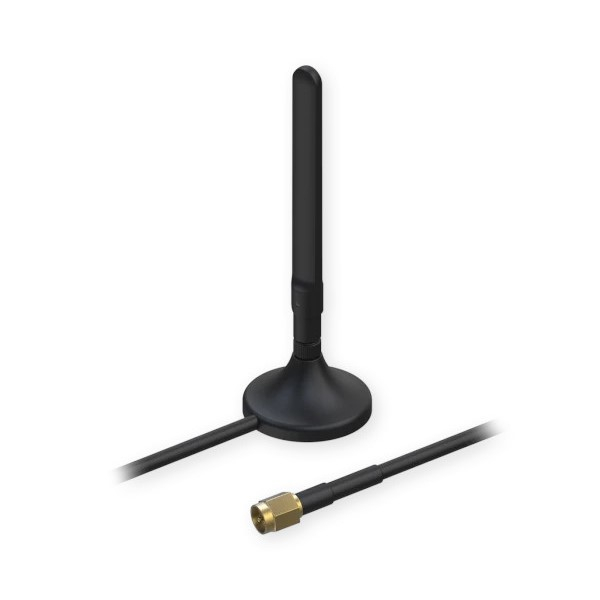

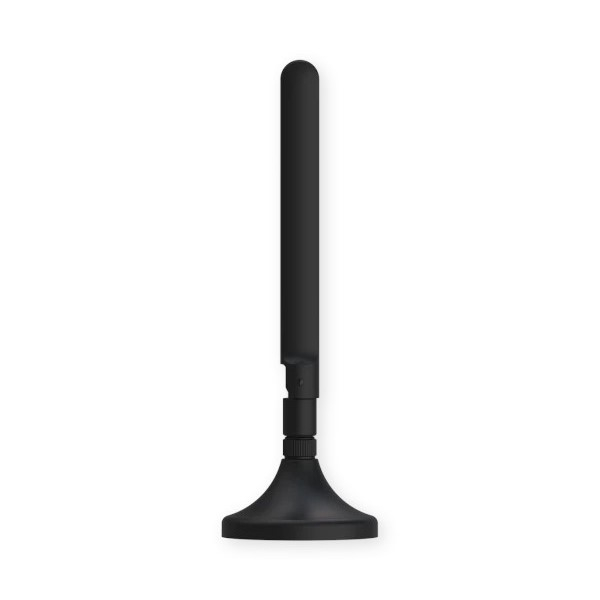

Teltonika 5G Mobile Magnetic SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
en stock
?
12.00 €
12.00 €
Certified Teltonika Engineers
Official Teltonika Distributor
Descripción detallada
Especificaciones técnicas
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
5G (NR)
Antena
Diseño de Antena
Omni
Rango de Frecuencia y Ganancia de la Antena Móvil
0.617 - 0.960 (GHz) 3.6 (dBi), 1.40 - 2.69 (GHz) 3.6 (dBi), 3.30 - 5.90 (GHz) 3.6 (dBi)
Ganancia de Antena Móvil
3.6 dBi, 3.6 dBi, 3.6 dBi
Polarización
Lineal
Longitud de Cable
3 m
VSWR
< 3.5
Impedancia
50 Ω
Conector
Conectores de RF

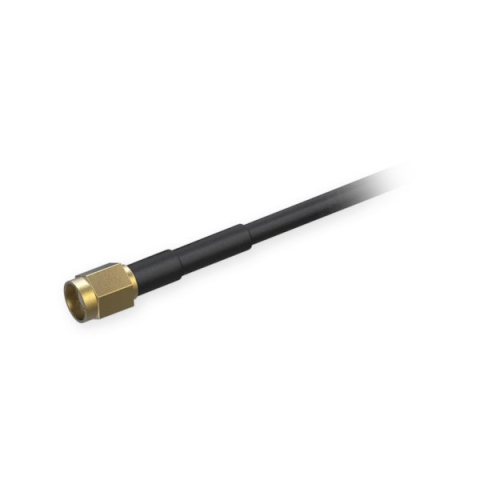

(1) SMA Male
Parámetros Físicos
Código de protección de ingreso
IP33
Peso
0.15 kg
Temperatura de funcionamiento
-20 °C a 65 °C
Medio ambiente
Interior
Método de montaje
Magnética
El Paquete Contiene
Unidades
1 piezas
