Marca
Número de pieza del fabricante
PR1US540
Garantía
?
24 meses
EAN
4779051840632

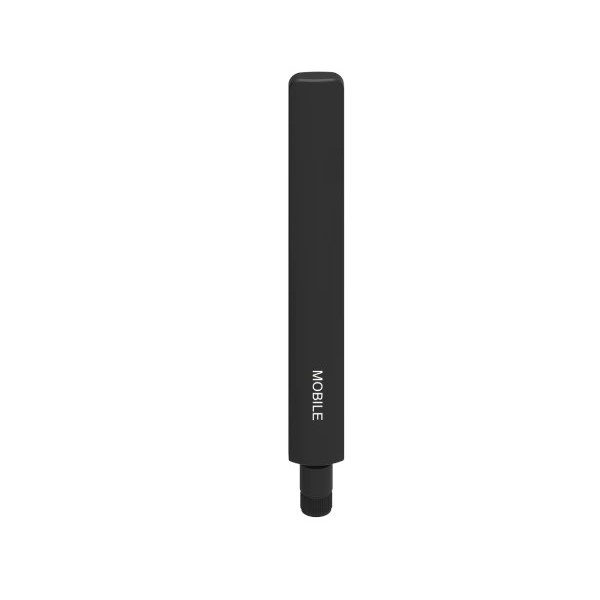

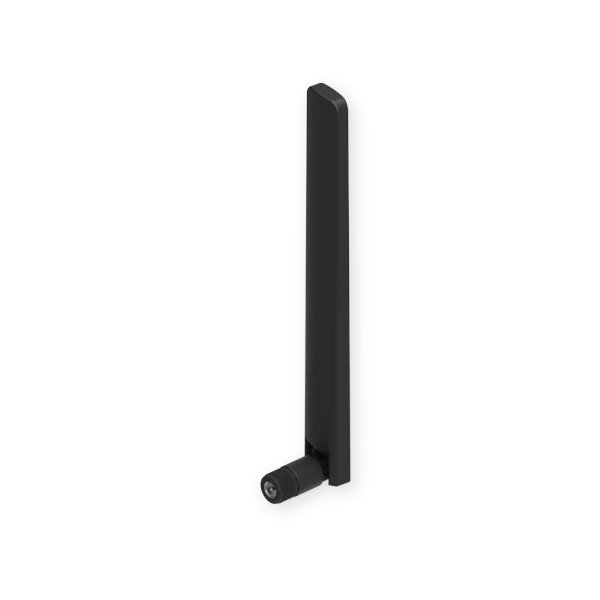

Teltonika 5G Mobile SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
en stock
?
4.30 €
4.30 €
Certified Teltonika Engineers
Official Teltonika Distributor
Descripción detallada
Especificaciones técnicas
Productos compatibles
Especificación
Red Móvil
Generación de redes móviles
5G (NR)
Antena
Diseño de Antena
Omni
Rango de Frecuencia y Ganancia de la Antena Móvil
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Ganancia de Antena Móvil
4.5 dBi, 4.5 dBi, 4.5 dBi, 4.5 dBi
Polarización
Lineal
VSWR
< 3
Impedancia
50 Ω
Conector
Conectores de RF
(1) SMA Male
Parámetros Físicos
Color
Negro
Código de protección de ingreso
IP33
Peso
0.024 kg
Temperatura de funcionamiento
-40 °C a 85 °C
Medio ambiente
Interior
Método de montaje
Tornillo
El Paquete Contiene
Unidades
1 piezas
